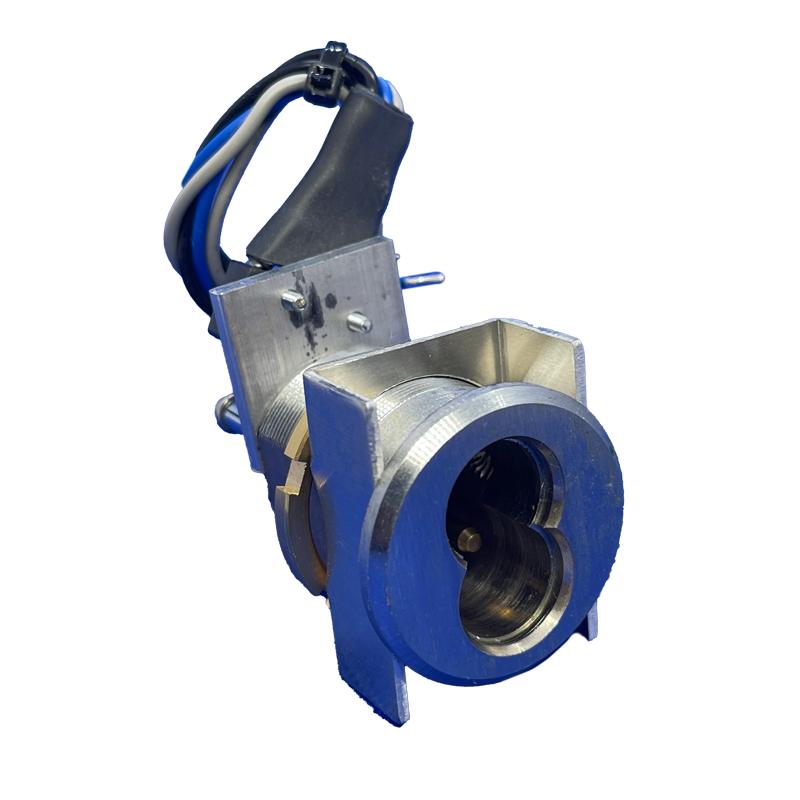

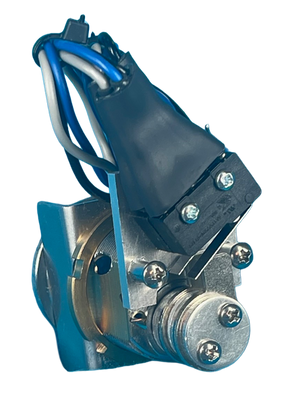

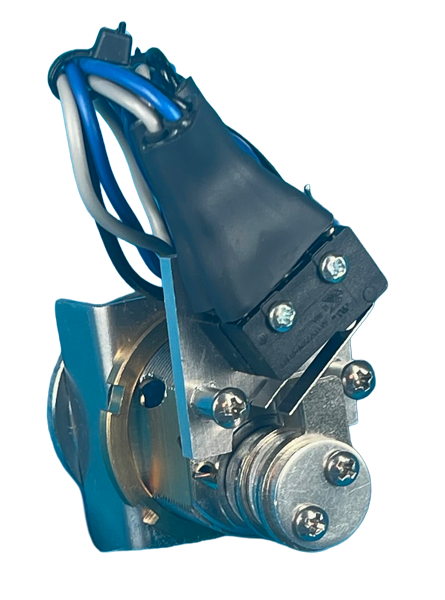

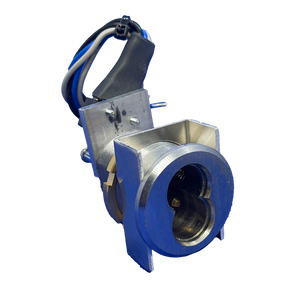

ICCO03AJ1 2 SPDT On-On 2 o'clock CW Manual Return Action (No Detent)
Couldn't load pickup availability
Full Details
SWITCH TYPE
SPDT
(Single pole – Double Throw)
CONTACT RATING
6A 125/ 250VAC, 5A 30 VDC, 7″ WIRE
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA 626
KEY ROTATION
36° Clockwise-on
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32″dia by .950″ (flat width) Double “D” Design
APPLICATION A1
ETI model AJ1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary on-on with 33° clockwise Rotation with SPDT Switch, 5 amp Contact Rating for control applications in Shunting, Activating or Deactivating Control Equipment and other applications.
