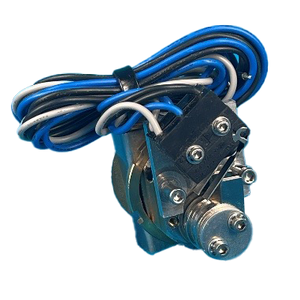

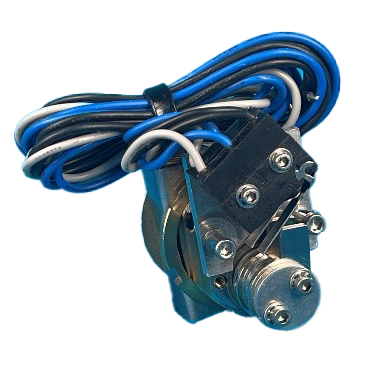

ICCO03AWJ1 2 SPDT On-On 2 o'clock CW Manual Return Action (No Detent)

SWITCH TYPE
SPDT
(Single pole - Double Throw)

IP67 WATERPROOF
12" Wire Length

CONTACT RATING
5a 125/250v AC, .5a 30v DC

SWITCH ACTION
Momentary
on-on

FINISHES
BHMA 626

KEY ROTATION
30 DEGREES ROTATION On
Manual Rotation and Return
NON KEY RETAINED

PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design

APPLICATION AW1/AWJ1 (2 switch)
ETI model AW1/AWJ1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Maintained On-On with 30° clockwise Rotation with SPDT Switch IP67 Waterproof Rating Contact Rating 5a 125/250v AC, 0.0.5A 30v DC.
12" wire length for control applications in Shunting, Activating or Deactivating Control.
