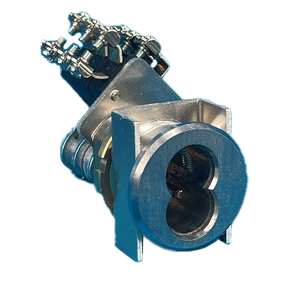

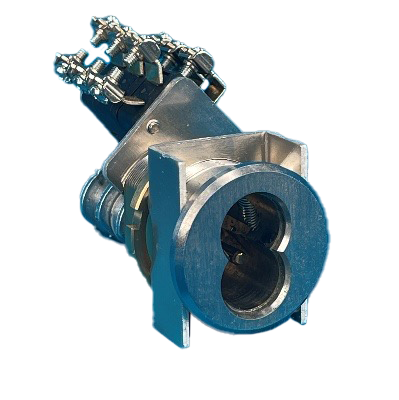

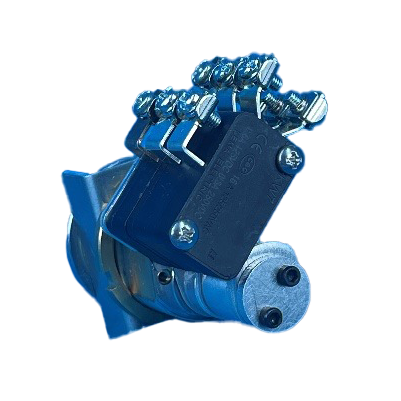

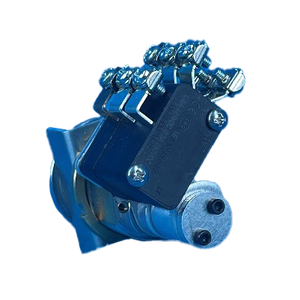

ICCO03T4 3 SPDT On-On 6 o'clock CW Detent Key Retained
Couldn't load pickup availability
Full Details
SWITCH TYPE
(3) SPDT
(Single pole - Double Throw)
CONTACT RATING
15a125v/250v AC, 0,6a 125v DC
0.3A 250v DC
SWITCH ACTION
Maintained
on-on
FINISHES
BHMA 626
KEY ROTATION
180 DEGREES ROTATION DETENT-On
KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION T4 (3 switch)
ETI model T4 Interchangeable Core Key Switch Controls will integrate into systems performing the Switch Action.
Maintained On-On with 180° clockwise rotation, featuring 3-SPDT switch contact ratings of 15A 125/250V AC and 0.6A 125V, 0.3A 250V DC.
Suitable for control applications in shunting, activating, or deactivating control.
