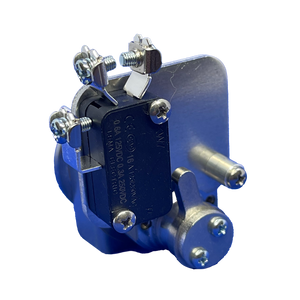

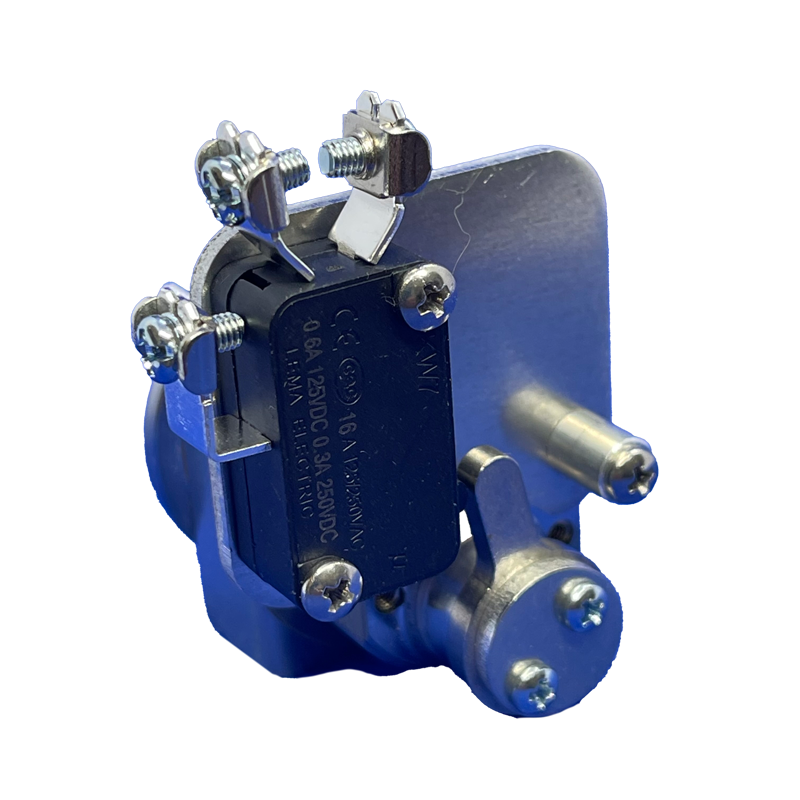

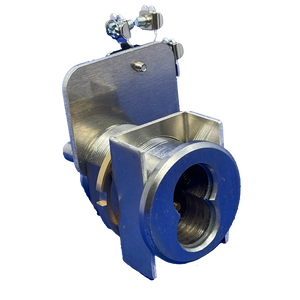

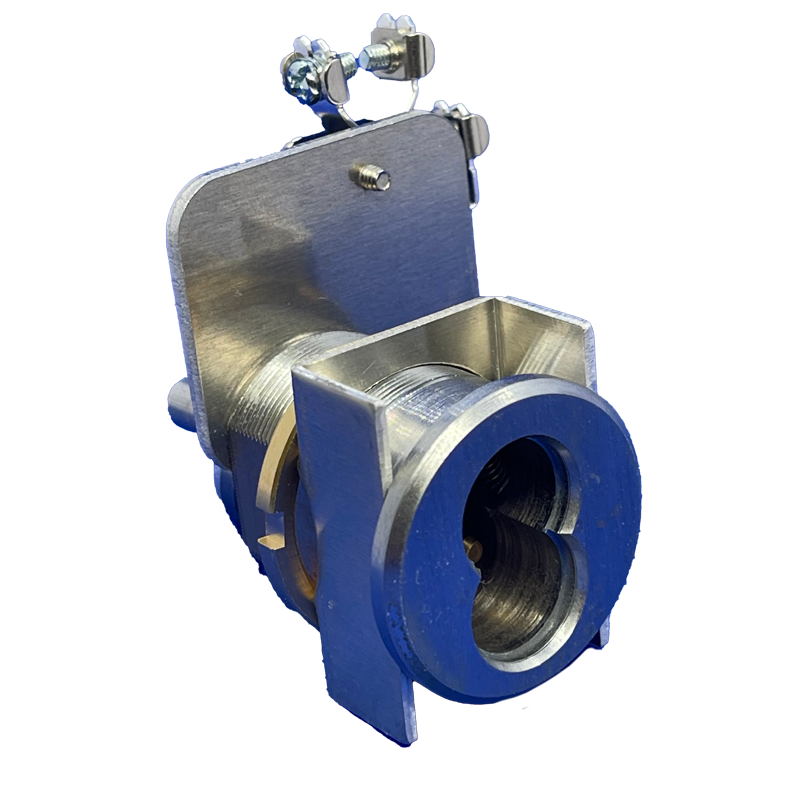

ICES67B3 Key Switch

Key Switch for Panel Mount Only

SWITCH TYPE
B3-SPDT
(Single pole – Double Throw)

CONTACT RATING
16A 125/ 250VAC, 0.6 125 VDC-0.3 250VDC

SWITCH ACTION
Momentary
on-on

FINISHES
BHMA
626

KEY ROTATION
30º
Clockwise-on

PANEL MOUNT PREPARATION
Large Cam Lock Style 1-5/32”dia by .950” (flat width) Double “D” Design
MODEL: J-3 (2) SPDT Switches (Single Pole – Double Pole)

APPLICATION B3/J3 (2 switch)
ETI model B3 and J3 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary on-on with 30° clockwise rotation with SPDT Switch, 15 amp Contact Rating for control applications in Shunting, Activating or Deactivating Control Equipment and other applications.
