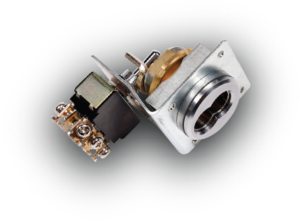

ICES67K4 1 DPDT (On)-Off-(On) 2 o'clock/10 o'clock CW/CCW Spring Assist Return

SWITCH TYPE
SPDT
(Single pole – Double Throw)

CONTACT RATING
15 AMP 125VAC
10 AMP 250VAC
3/4 HP 125-250VAC

SWITCH ACTION
Maintained
on-on

FINISHES
BHMA 626

KEY ROTATION
32° Clockwise-on,
32° Counter Clockwise-on

PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32″dia by .950″ (flat width) Double “D” Design

APPLICATION L2
ETI model L4 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Momentary off-center with 24° rotation clockwise-on and counter clockwise-on with SPDT Switch, 15 amp 125 ac, Motor Load 400w 125 ac Contact Rating for control applications in Gate, Overhead Door Control, Pump control , Activating or Deactivating Control Equipment and other applications .
