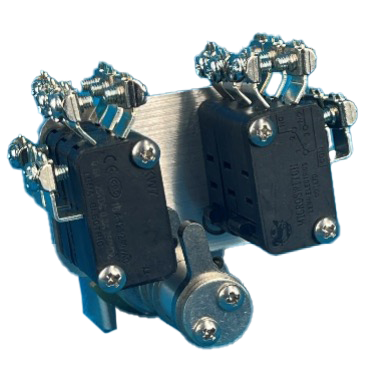

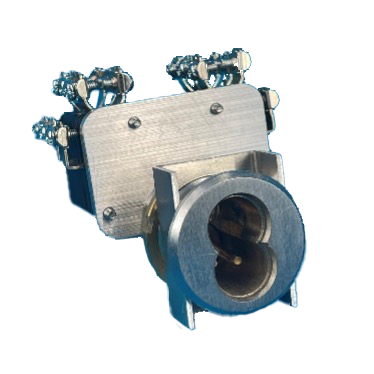

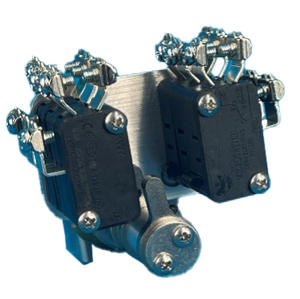

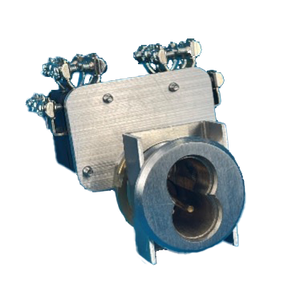

ICME05W4 6 SPDT (On)-(On) 2 o'clock/10 o'clock CW/CCW Spring Assist Return
Couldn't load pickup availability
Full Details
Key Switch for Panel Mount Only
SWITCH TYPE
(6) SPDT
(Single pole - Double Throw)
CONTACT RATING
16A 125/ 250VAC, 0.6 125 VDC-0.3 250VDC
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA 626
KEY ROTATION
30° Clockwise-on,
30° Counter Clockwise-on
NON KEY-RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style 1 5/32″dia by .950″ (flat width) Double “D” Design
APPLICATION W4
ETI model W4 Inter-changeable Core Key Switch.Control s will integrate into systems performing the Switch Action of Momentary off- center with 30° rotation clockwise-on and counter clockwise-on with SPDT Switch 15amp Contact Rating, Design for Panel Mounting integration in control applications of Activating or Deactivating Control Equipment and other applications.
