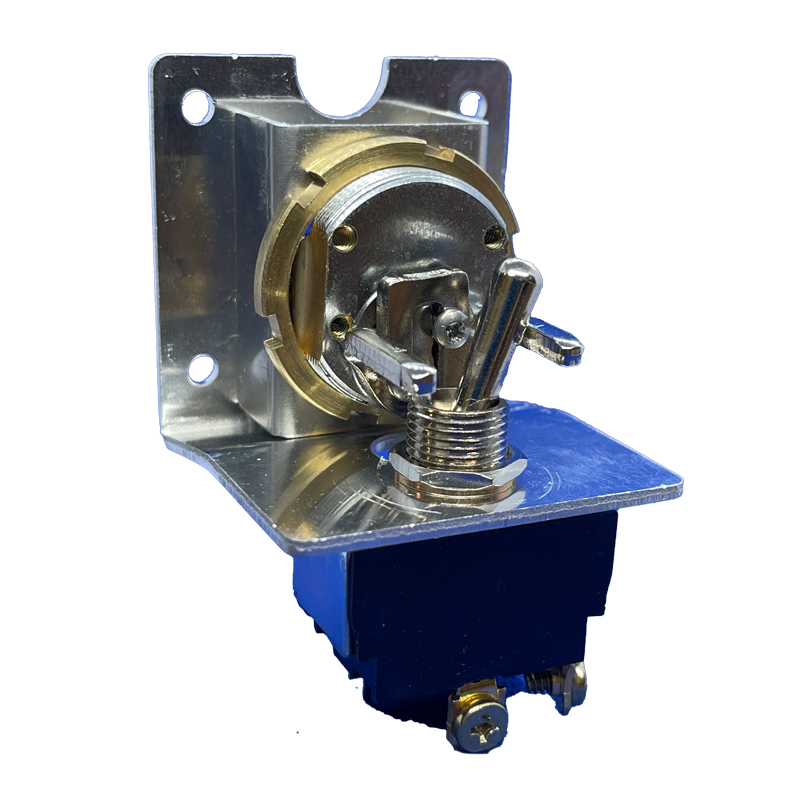

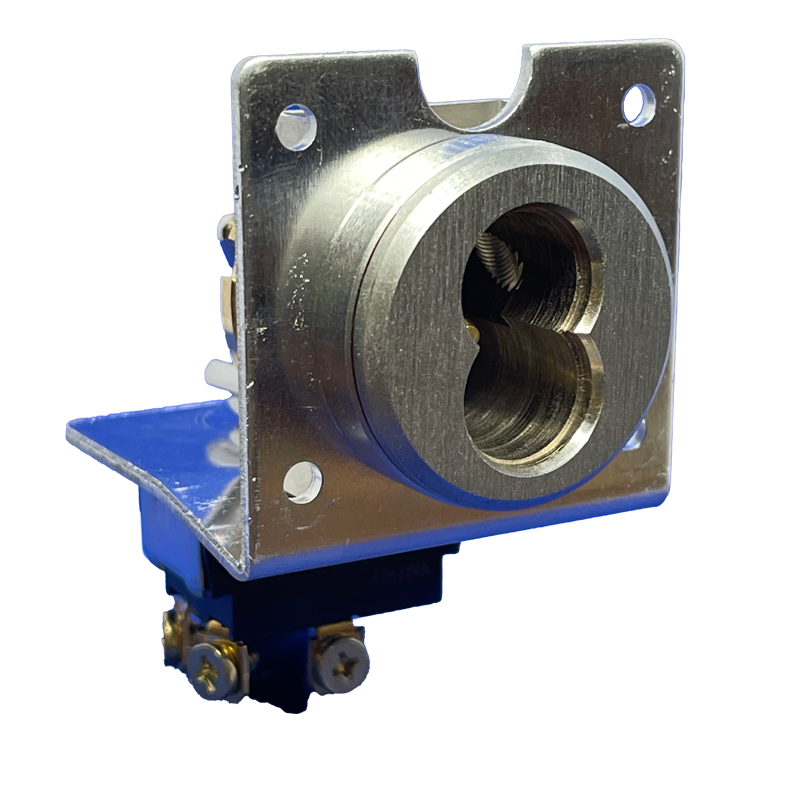

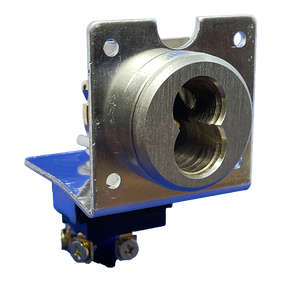

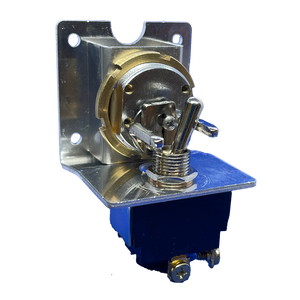

ICSC01D2 1 DPDT Off-On 2 o'clock CW Maintained Non Key Retained

SWITCH TYPE
TPDT
(Triple pole – Double Throw)

CONTACT RATING
15 AMP 125VAC
12 AMP 250VAC
2HP 125-277VAC
15AMP 125/277

SWITCH ACTION
Maintained
on-center off-on

FINISHES
BHMA 626

KEY ROTATION
30° Clockwise-on,
30° Counter Clockwise-on

PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/32″dia by .950″ (flat width) Double “D” Design

APPLICATION E2
ETI model E2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action of Maintained on-center off center with 30° rotation clockwise-on and counter clockwise-off with TPDT Switch, 25 amp 125 ac, 20amp DC30v Contact Rating for control applications in lightin g, HVAC, Recreational Devices, Shunting, Activating or Deactivating Control Equipment and other applications.
