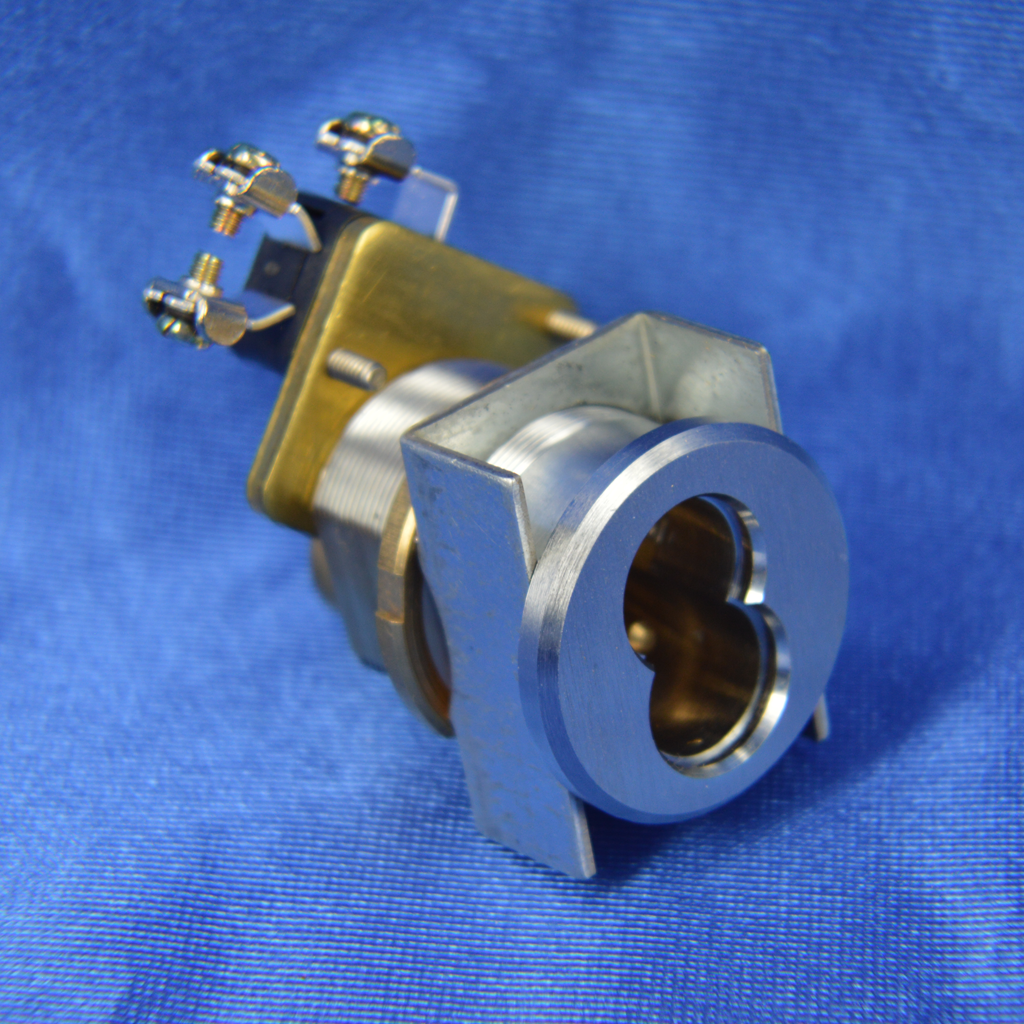

ICSC01J4 Single Key Switch

SWITCH TYPE: 2 Switches SPDT (single pole -double throw)
SWITCH ACTION: MAINTIANED ON-ON, KEY RETAINED IN 180O  POSITION
KEY ROTATION: 1800 Clockwise
CONTACT RATING: 15 Amp 125 vac, 15 Amp 250 vac, Resistive
PANEL MOUNT PREPARATION: LARGE CAM LOCK STYLE 1 5/32" Dia x .959 (flat width) Double "D" Design
 2 1/4” clearance for switch (spacer collars can be used to reduce depth of switch)
FINISH: 626 BHMA

Competitor Cross Reference: Exclusive ETI Product Design (patent pending)
