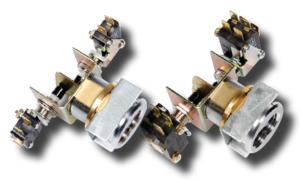

ICSC01P2 Dual Key Switch
Couldn't load pickup availability
Full Details
PANEL MOUNT ONLY
SWITCH TYPE: 2-SPDT (single pole-double throw)
SWITCH ACTION: MOMENTARY ON-OFF CENTER-ON
KEY ROTATION: 300 CLOCKWISE -on, 300 Counter Clockwise-on
CONTACT RATING: 15 Amp 125 vac, 15 Amp 250 vac, 20 Amp 30 vdc, Resistive
Panel Mount Installation Only
PANEL MOUNT PREPARATION: LARGE CAM LOCK STYLE 1 5/32" Dia x .959 (flat width) Double "D" Design. 2 3/8” clearance for switch
FINISH: 626 BHMA
Competitor Cross Reference: Stanley/Best 1W-P2-626 (2 switch)
